Luca
Guest
|
 Posted:
Tue Apr 05, 2005 12:10 pm Post subject:
Which component is this? |
|
|

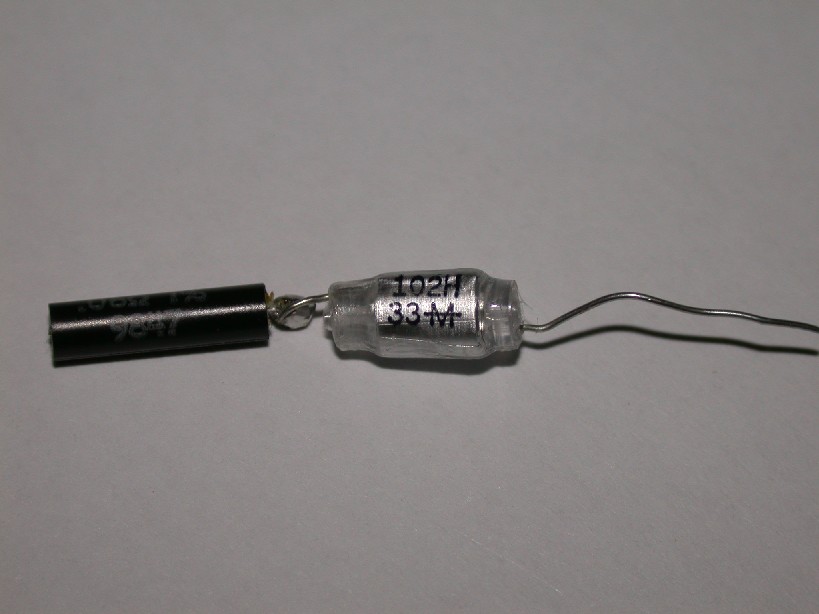

Please, could you help me identifiying which component is the transparent
cover one shown here:
http://www.lucaveneziani.it/images/DSCN1511.JPG
Thanks a lot.
Luca
|
|
| Back to top |
|
 |
Spehro Pefhany
Guest
|
| Posted:
Tue Apr 05, 2005 12:10 pm Post subject:
Re: Which component is this? |
|
|
On Tue, 05 Apr 2005 10:40:29 GMT, the renowned "Luca"
<lucavenezianiTOGLI@hotmail.com> wrote:
Looks like a 1000pF polystyrene capacitor.
Best regards,
Spehro Pefhany
--
"it's the network..." "The Journey is the reward"
speff@interlog.com Info for manufacturers: http://www.trexon.com
Embedded software/hardware/analog Info for designers: http://www.speff.com |
|
| Back to top |
|
|
jim dorey
Guest
|
| Posted:
Tue Apr 05, 2005 12:10 pm Post subject:
Re: Which component is this? |
|
|
On Tue, 05 Apr 2005 10:40:29 GMT, Luca <lucavenezianiTOGLI@hotmail.com>
wrote:
| Quote: | Please, could you help me identifiying which component is the transparent
cover one shown here:
|
seems be inductor.
--
Using Opera's revolutionary e-mail client: http://www.opera.com/mail/
|
|
| Back to top |
|
|
Watson A.Name - \"Watt Su
Guest
|
| Posted:
Tue Apr 05, 2005 3:10 pm Post subject:
Re: Which component is this? |
|
|
"Spehro Pefhany" <speffSNIP@interlogDOTyou.knowwhat> wrote in message
news:1nv451tdtc3odts8qjdtj5h4ctauo2goil@4ax.com...
Exactly. The H is the tolerance, and I believe it's 2 percent. |
|
| Back to top |
|
|
Wayne
Guest
|
| Posted:
Tue Apr 05, 2005 9:10 pm Post subject:
Re: Which component is this? |
|
|
Could be one of those thermal fuses like in a hair blower.
"Luca" <lucavenezianiTOGLI@hotmail.com> wrote in message
news:xWt4e.737926$b5.33292890@news3.tin.it...
|
|
| Back to top |
|
|
Michael A. Terrell
Guest
|
| Posted:
Wed Apr 06, 2005 6:10 am Post subject:
Re: Which component is this? |
|
|
"Watson A.Name - \"Watt Sun, the Dark Remover\"" wrote:
| Quote: |
"Spehro Pefhany" <speffSNIP@interlogDOTyou.knowwhat> wrote in message
news:1nv451tdtc3odts8qjdtj5h4ctauo2goil@4ax.com...
On Tue, 05 Apr 2005 10:40:29 GMT, the renowned "Luca"
lucavenezianiTOGLI@hotmail.com> wrote:
Looks like a 1000pF polystyrene capacitor.
Best regards,
Spehro Pefhany
Exactly. The H is the tolerance, and I believe it's 2 percent.
|
Yes, and you have to watch for hairline cracks in old polystyrene
caps.
--
Former professional electron wrangler.
Michael A. Terrell
Central Florida |
|
| Back to top |
|
|
Jim Adney
Guest
|
| Posted:
Wed Apr 06, 2005 6:10 am Post subject:
Re: Which component is this? |
|
|
On Tue, 05 Apr 2005 10:40:29 GMT "Luca"
<lucavenezianiTOGLI@hotmail.com> wrote:
Typical polystyrene capacitor.
-
-----------------------------------------------
Jim Adney jadney@vwtype3.org
Madison, WI 53711 USA
----------------------------------------------- |
|
| Back to top |
|
|
Luca
Guest
|
| Posted:
Wed Apr 06, 2005 12:10 pm Post subject:
Re: Which component is this? |
|
|
Thanks a lot.
So, to sum up, it is a 1000pF polystyrene capacito at 33 volts and 2%
tolerance.
Is it ok?
How could I fine some at an on-line store?
I mean 50 or 100 could be ok.
Thanks
Luca |
|
| Back to top |
|
|
Watson A.Name - \"Watt Su
Guest
|
| Posted:
Wed Apr 06, 2005 3:10 pm Post subject:
Re: Which component is this? |
|
|
"Luca" <lucavenezianiTOGLI@hotmail.com> wrote in message
news:mLN4e.742025$b5.33432708@news3.tin.it...
| Quote: | Thanks a lot.
So, to sum up, it is a 1000pF polystyrene capacito at 33 volts and 2%
tolerance.
Is it ok?
|
I don't believe anyone said it was 33 volts. The voltage is not
important as long as it's above the supply voltage. You will probably
have a hard time finding a 1000 pF, 2% polystyrene at any voltage,
because that's a close tolerance. So if it's a 100 volt or 250 volt or
whatever, use it as long as it's above the supply voltage.
Mouser and Digi-key are two online distributors.
| Quote: | How could I fine some at an on-line store?
I mean 50 or 100 could be ok.
Thanks
Luca |
|
|
| Back to top |
|
|
Luca
Guest
|
| Posted:
Wed Apr 06, 2005 3:10 pm Post subject:
Re: Which component is this? |
|
|
"Watson A.Name - "Watt Sun, the Dark Remover""
| Quote: | I don't believe anyone said it was 33 volts. The voltage is not
important as long as it's above the supply voltage. You will probably
have a hard time finding a 1000 pF, 2% polystyrene at any voltage,
because that's a close tolerance. So if it's a 100 volt or 250 volt or
whatever, use it as long as it's above the supply voltage.
|
Are you saying it doesn't matter the voltage?
I mean, this capacitor was put in series with other resistors in a hi-end
interconnect cable connecting the screen to the center conductor (the screen
appeared to be also connected to the outer conductor).
Do you think the voltage of the capacitor doesn't matter at all?
Thanks
Luca |
|
| Back to top |
|
|
Vidar Løkken
Guest
|
| Posted:
Wed Apr 06, 2005 3:10 pm Post subject:
Re: Which component is this? |
|
|
Luca wrote:
| Quote: | Are you saying it doesn't matter the voltage?
I mean, this capacitor was put in series with other resistors in a hi-end
interconnect cable connecting the screen to the center conductor (the screen
appeared to be also connected to the outer conductor).
Do you think the voltage of the capacitor doesn't matter at all?
|
Yep, so he says. And he is completely right. As long as the capacitor
can handle the voltage, it is not really interesting how much more
voltage it can handle... kinda like wire insulation. If you need
insulation that can take 12V, you don't bloody care if it can take 100V,
since that means it takes 12 fine...
--
MVH,
Vidar
www.bitsex.net |
|
| Back to top |
|
|
Vidar Løkken
Guest
|
| Posted:
Wed Apr 06, 2005 6:10 pm Post subject:
Re: Which component is this? |
|
|
Luca wrote:
| Quote: | Yep, so he says. And he is completely right. As long as the capacitor
can handle the voltage, it is not really interesting how much more
voltage it can handle... kinda like wire insulation. If you need
insulation that can take 12V, you don't bloody care if it can take 100V,
since that means it takes 12 fine...
Well, you were extremely clear.
Thanks a lot.
Just one question more.
Someone says we are talking about 33pf and someone about 1000pf aka .001uf
aka1 nf.
Which version do you suggest?
The 33pf or the 1000pf one?
The one that is correct... Look up in the schema. |
But, a capacitor that can handle higher voltage, is physically bigger,
so check if it fits your application
--
MVH,
Vidar
www.bitsex.net |
|
| Back to top |
|
|
Luca
Guest
|
| Posted:
Wed Apr 06, 2005 6:10 pm Post subject:
Re: Which component is this? |
|
|
| Quote: | Yep, so he says. And he is completely right. As long as the capacitor
can handle the voltage, it is not really interesting how much more
voltage it can handle... kinda like wire insulation. If you need
insulation that can take 12V, you don't bloody care if it can take 100V,
since that means it takes 12 fine...
|
Well, you were extremely clear.
Thanks a lot.
Just one question more.
Someone says we are talking about 33pf and someone about 1000pf aka .001uf
aka1 nf.
Which version do you suggest?
The 33pf or the 1000pf one?
Thanks |
|
| Back to top |
|
|
Watson A.Name - \"Watt Su
Guest
|
| Posted:
Thu Apr 07, 2005 3:10 am Post subject:
Re: Which component is this? |
|
|
"Luca" <lucavenezianiTOGLI@hotmail.com> wrote in message
news:qQR4e.743463$b5.33451131@news3.tin.it...
| Quote: |
"Watson A.Name - "Watt Sun, the Dark Remover""
I don't believe anyone said it was 33 volts. The voltage is not
important as long as it's above the supply voltage. You will
probably
have a hard time finding a 1000 pF, 2% polystyrene at any voltage,
because that's a close tolerance. So if it's a 100 volt or 250 volt
or
whatever, use it as long as it's above the supply voltage.
Are you saying it doesn't matter the voltage?
I mean, this capacitor was put in series with other resistors in a
hi-end
interconnect cable connecting the screen to the center conductor (the
screen
appeared to be also connected to the outer conductor).
Do you think the voltage of the capacitor doesn't matter at all?
|
Higher voltage gives more safety margin. As long as it will fit in the
same space, use it.
|
|
| Back to top |
|
|
Watson A.Name - \"Watt Su
Guest
|
| Posted:
Thu Apr 07, 2005 3:10 am Post subject:
Re: Which component is this? |
|
|
"Luca" <lucavenezianiTOGLI@hotmail.com> wrote in message
news:1oU4e.744151$b5.33467691@news3.tin.it...
| Quote: | Yep, so he says. And he is completely right. As long as the
capacitor
can handle the voltage, it is not really interesting how much more
voltage it can handle... kinda like wire insulation. If you need
insulation that can take 12V, you don't bloody care if it can take
100V,
since that means it takes 12 fine...
Well, you were extremely clear.
Thanks a lot.
Just one question more.
Someone says we are talking about 33pf and someone about 1000pf aka
..001uf
aka1 nf.
Which version do you suggest?
The 33pf or the 1000pf one?
Thanks
|
We thought we made that abundantly clear to you. The 102 stands for 10
with two zeroes after it. That's 1000 pF AKA .001 uF AKA 1nF. the H
stands for 2 percent. Wherever you got the other 33pF crap, forget it.
It's time for you to quit asking questions and get your butt out the
door and hunt one of them down. Go to it. |
|
